Min. Agindua:1 Piece/Pieces
Modeloaren zenbakia: EV101WXM-N81

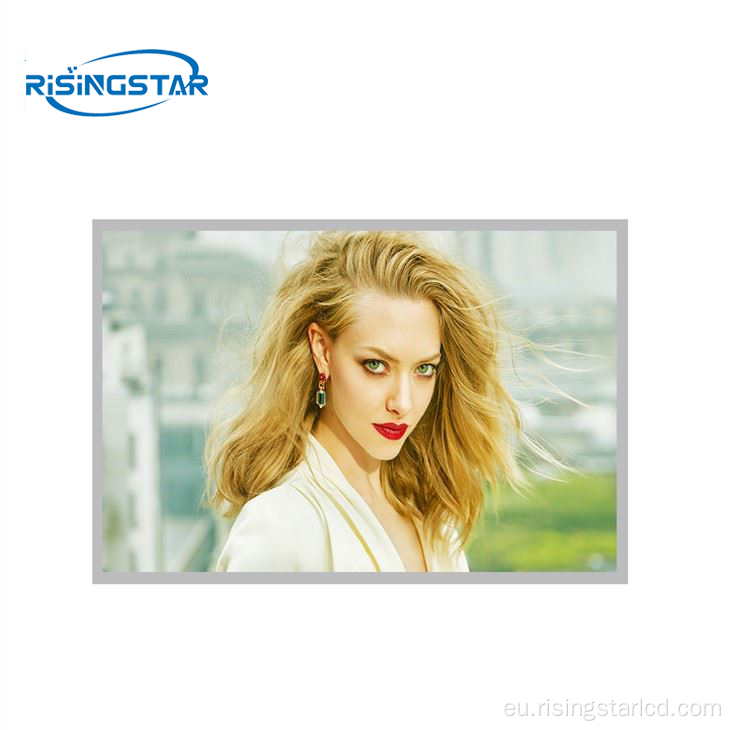

EV101WXM-N81 10,1 hazbeteko LCD modulua da A-SI TFT-LCD teknologia erabiliz. Argiztapen argia du, LED gidariaren argiztatzeko unitatea barne, ukitu gabe. Bistaratzeko bereizmena 1280 (RGB) × 800 (WXGA) da, alderdiaren ratioa 16:10 da (zabalera: altuera), eta pixelak RGB marra bertikaletan antolatuta daude. Bistaratzeko eremuaren tamaina 216,96 × 135,6 da (zabalera × altuera) MM, 219,4 × 138.0 (zabalera × altuera) mm-koa da, kanpoko tamaina 233,2 × 152,9 da (querth × 3,4 (Lodiera) MM, Produktu garbia 505g (Tipula.). Atzeko argiztapenari dagokionez, produktu honek uraren sarrera argi iturri bat erabiltzen du 50 k ordutan, LED gidaria barne. EV101WXM-N81-ek LVDak (1 C, 8 bit) seinale interfazea erabiltzen du, guztira 20 pin, terminal konexioa erabiltzen du, unitatearen pantailaren tentsioa 3,3V da (tip.). FV 60hz da freskatze tasa bertikal tipikoa. -20 ºC-tan 70 ºC-tan (30 ºC) -30 ºC-tan daude. Bere LED argiaren argiztatuta oinarrituta, bizitza 50.000 ordu baino gehiago da.
R-Star Shenzhen-ek, High End Nighter LCD-ren fabrikatzaile profesionala gara. Nabarmendu LCD, Industrial Nighlight TFT-LCD, LCD gardena eta bistaratzeko markoa, alde biko LCDa, Alde handiko LCD bikoitza eta goi-mailako LCD panela. Laburbilduz, gorakadak distira handiko argiaren argiztapena moduluaren teknologia esperientzia du, 8 urteko TFT moduluen diseinu, ikerketa eta garapen, ekoizpen ahalmena, 10 urte kalitate handiko lehengaien hornidura katearen 10 urte.
| brand | BOE | Model name | EV101WXM-N81 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800, WXGA, 149PPI | Pixel configuration | RGB vertical bar |
| Display Area | 216.96×135.6(H×V)mm | Surface treatment | / |
| Visual size | 233.2×152.9×10.4(H×V×D) mm | Contrast Ratio | 900:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 233.2×152.9×10.4(H×V×D)mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 20 pins | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
Honako hauek dira tamaina eta parametro berdinak
| brand | BOE | Model name | EV101WUM-N20 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1920(RGB)×1200, WUXGA, 224PPI | Pixel configuration | RGB vertical bar |
| Display Area | 216.806×135.504mm(H×V) | Surface treatment | / |
| Visual size | / | Contrast Ratio | 900:1 (Typ.) (TM) |
| Brightness(cd/m²) | 600cd/m²(Typ.)or customized | Outline dimension | 229.45×149.22(H×V)mm |
| Viewing Angle | 80/80/80/80(Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 45 pins | ||
| work environment | Storage temperature: -25 to 80 °C Operation Temperature: -20 to 70 °C |
| brand | BOE | Model name | AT101WSM-N11-58P0 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×600, WSVGA, 117PPI | Pixel configuration | RGB vertical bar |
| Display Area | 222.72×125.28mm(H×V) | Surface treatment | Fog surface，Hard coating (3H) |
| Visual size | 226×128.6(H×V)mm | Contrast Ratio | 500:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 235×144.9×5.44mm(H×V×D) |
| Viewing Angle | 80/80/60/70(Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 6/8-bit) , 60 pins , FPC | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
| brand | BOE | Model name | EV101WXM-N82 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800 [WXGA] 149PPI | Pixel configuration | RGB vertical bar |
| Display Area | 216.96 × 135.6 mm (H×V) | Surface treatment | / |
| Visual size | / | Contrast Ratio | 900:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 228.6 ×149.2×6 mm (H×V×D) |
| Viewing Angle | 85/85/85/85(Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 40 pins | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
